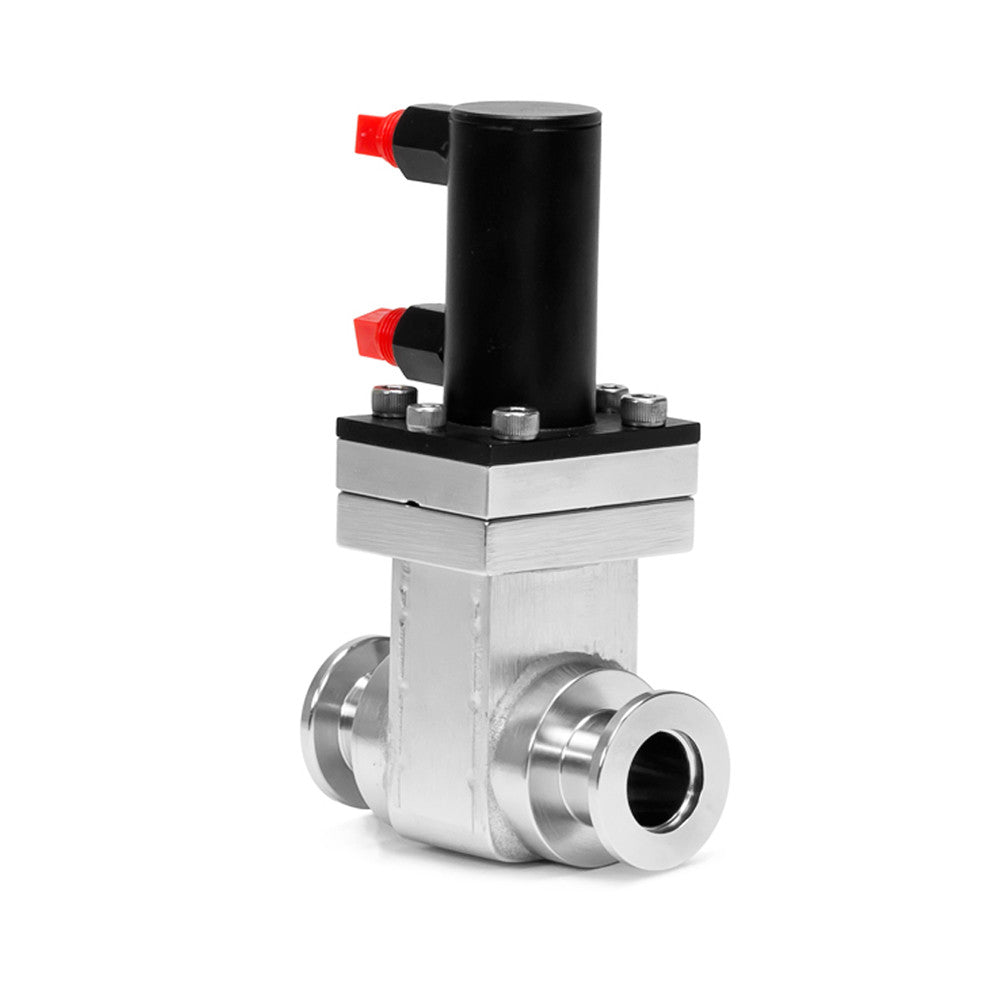

DN16KF HVA High Vacuum Gate Valve, pneumatic operation

Allectra SKU: 515-GV-K16-P
DN16KF HVA High Vacuum Gate Valve, pneumatic operation

DN16KF HVA High Vacuum Gate Valve, pneumatic operation

Allectra SKU: 515-GV-K16-P
Your inquiry was submitted successfully. You can expect to hear from us shortly.

The HVA pneumatically operated flange series of standard cycle gate valves are designed for high vacuum applications. These valves provide valving for cryopumps, turbo pumps, ion pumps and other applications requiring clean, low outgassing valves.

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN16KF flange
  • Vacuum Seal Viton O Ring, Viton Bonnet
  • Body Material Stainless Steel
  • Temperature Range Open 200°C, Closed 150°C
  • Inside Diameter 15.9
  • Thickness 75.2
