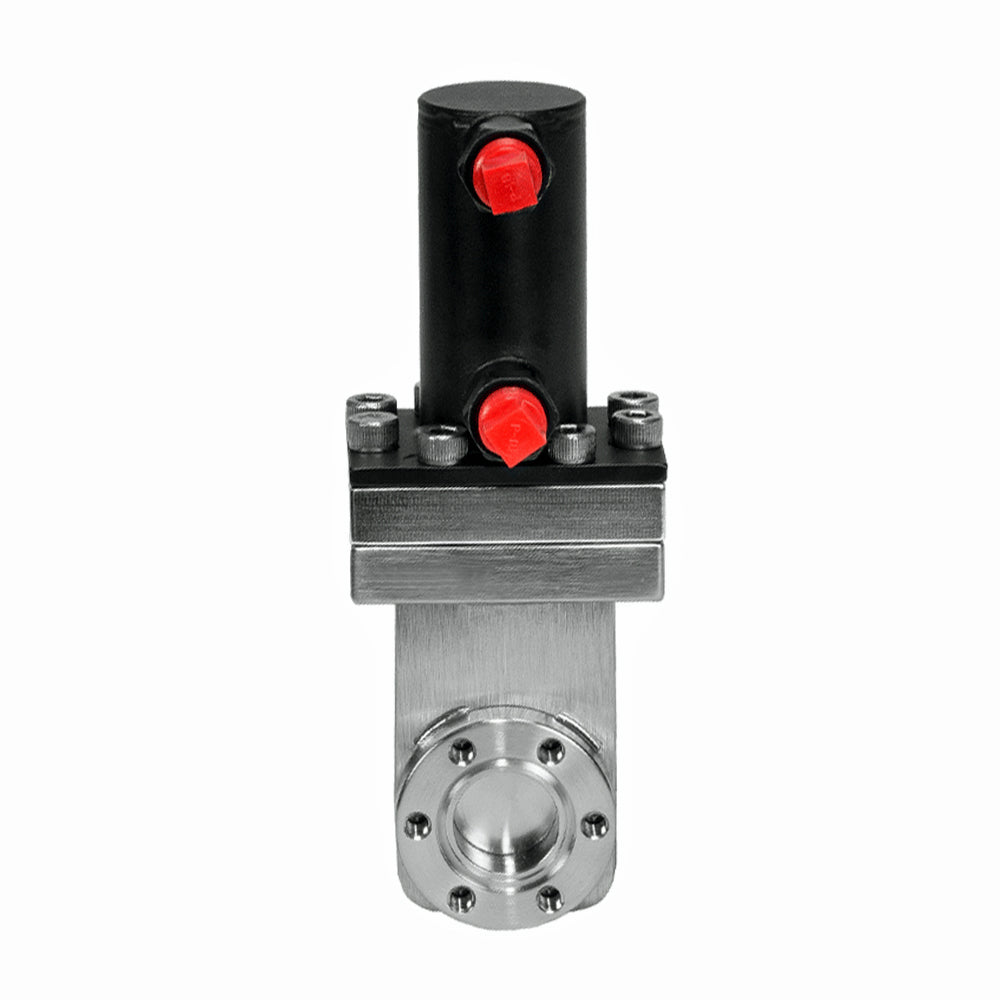

DN16CF HVA UHV Gate Valve, Viton Seal, High Temperature Lubricant, pneumatic operation
Allectra
SKU: 515-GV-C16-P
The HVA pneumatically operated CF flange series of standard cycle gate valves provide compatibility with UHV systems when pressure ranges approximate 1 x 10-10 mbar and higher bakeout temperatures of 200°C are required. Supplied with 24V DC Actuator Normally Closed.
Specifications
- Vacuum Leak Rate UHV <5x10-10 mbar l/s
- Size or DN DN16CF (1.33” OD flange)
- Vacuum Seal Viton O Ring Metal Bonnet
- Body Material Stainless Steel
- Temperature Range Open 200°C, Closed 150°C
- Inside Diameter 15.9
- Thickness 39.6
