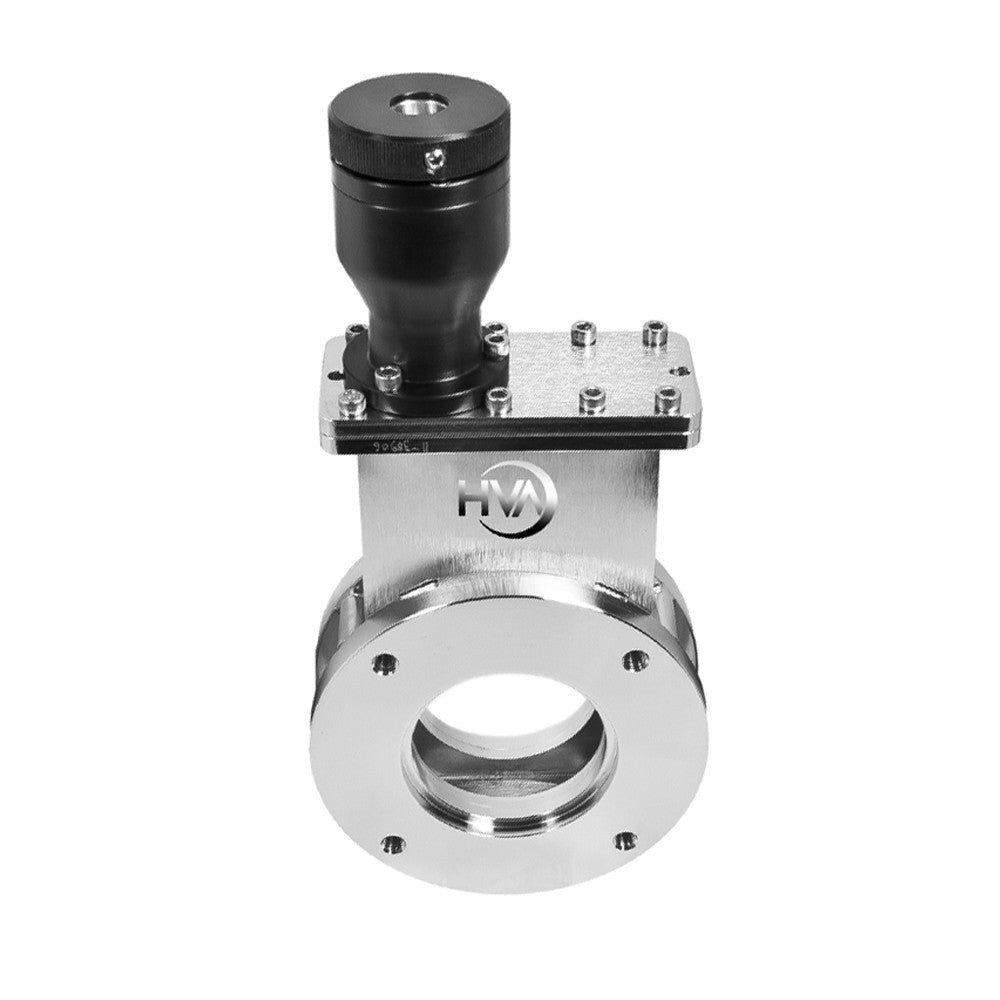

DN63ISO-F HVA High Vacuum Gate Valve, manual operation

Allectra SKU: 515-GV-ISO63
DN63ISO-F HVA High Vacuum Gate Valve, manual operation

DN63ISO-F HVA High Vacuum Gate Valve, manual operation

Allectra SKU: 515-GV-ISO63
Your inquiry was submitted successfully. You can expect to hear from us shortly.

The HVA ISO-F flange series of standard cycle gate valves are designed for high vacuum applications. These valves provide valving for cryopumps, turbo pumps, ion pumps and other applications requiring clean, low outgassing valves.

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN63ISO-K flange
  • Vacuum Seal Viton O Ring, Viton Bonnet
  • Body Material Stainless Steel 304
  • Temperature Range Open 200°C, Closed 150°C
  • Inside Diameter 63.5
  • Thickness 51.4
